Section 28 (Audio/Video/Entertainment/Connectivity (Service Information)): Camera: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

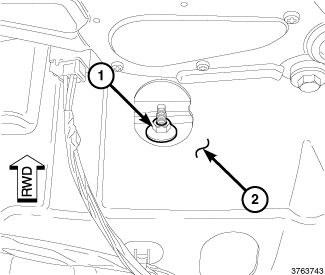

Fig 1: Nut & Liftgate

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the liftgate trim panel. Refer to PANEL, TRIM, LIFTGATE, REMOVAL .
Remove the nut (1) that secures the liftgate handle and backup camera assembly to the inside of the liftgate (2).

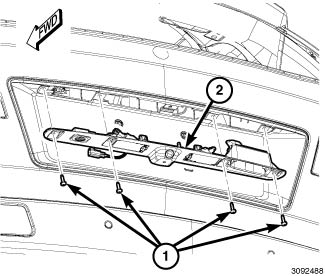

Fig 2: Four Screws & Backup Camera Assembly
Courtesy of CHRYSLER GROUP, LLC
Remove the four screws (1) that secure the liftgate handle and backup camera assembly (2) to the outside of the liftgate.

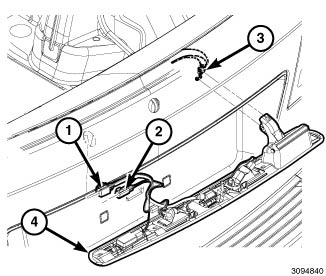

Fig 3: Backup Camera Assembly, Electrical Connectors & Cable
Courtesy of CHRYSLER GROUP, LLC
Partially remove the liftgate handle and backup camera assembly (4) from the liftgate and disconnect the electrical connectors (1 and 2).
Disconnect the liftgate handle latch cable (3) and remove the liftgate handle and backup camera assembly.
Remove the backup camera from the liftgate handle.
