Valve, Exhaust Gas RECIRCULATION (EGR) Airflow Control: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

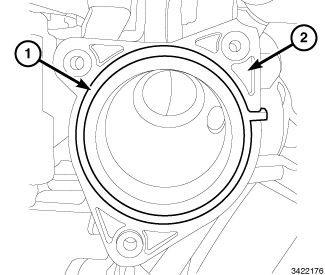

Fig 1: O-Ring Seal

Courtesy of CHRYSLER GROUP, LLC

Clean all gasket sealing surfaces.
Install a new O-ring seal (1) onto the intake manifold.

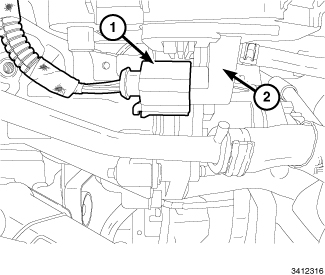

Fig 2: EGR Airflow Control Valve Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the EGR airflow control valve wire harness connector (1).

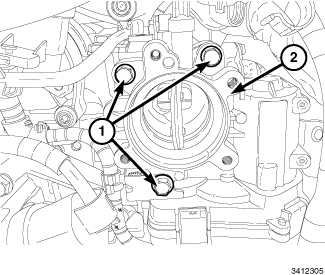

Fig 3: Exhaust Gas Recirculation (EGR) Air Flow Control Valve & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the EGR airflow control valve (2). Tighten bolts (1) to 9 N.m (80 in. lbs.).

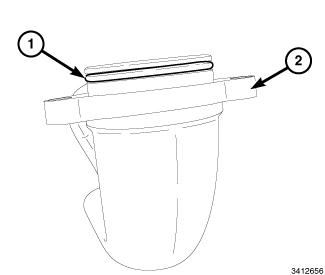

Fig 4: CAC Air Tube & O-ring Seal
Courtesy of CHRYSLER GROUP, LLC
Inspect the CAC air tube (2) O-ring seal (1) and replace as necessary.

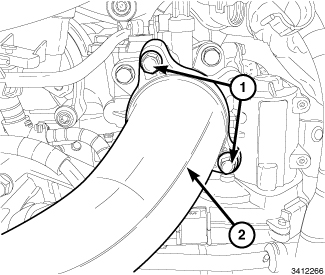

Fig 5: Bolts & Charge Air Cooler (CAC) Air Tube
Courtesy of CHRYSLER GROUP, LLC
Connect the Charge Air Cooler (CAC) air tube (2) to the EGR air flow control valve. Tighten bolts (1) to 9 N.m (80 in. lbs.).

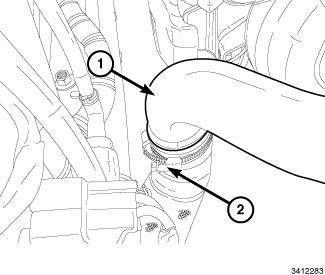

Fig 6: Clamp & CAC Air Tube
Courtesy of CHRYSLER GROUP, LLC
Install the CAC air tube (1) and securely tighten clamp (2).

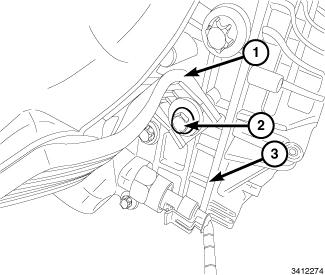

Fig 7: Bolt, CAC Air Tube & Transmission
Courtesy of CHRYSLER GROUP, LLC
Install the CAC air tube (1) to transaxle (3). Tighten bolt (2) 9 N.m (80 in. lbs.).

Fig 8: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner body. .
Install the engine cover (1).
Connect the negative battery cable.
