Valve, Positive Crankcase Ventilation (PCV): Installation: 3.6L

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

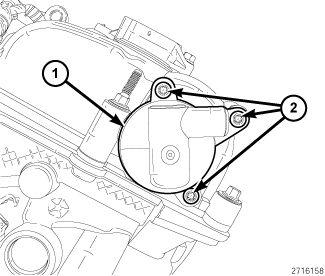

Fig 1: Three Screws & PCV Valve

Courtesy of CHRYSLER GROUP, LLC

Clean and inspect the sealing surfaces of the PCV valve and cylinder head cover. The seal can be reused provided it is free of cuts or tears.
Install the PCV valve seal in the cylinder head cover.
Install the PCV valve (1) with three screws (2). Tighten the screws to 4 N.m (35 in. lbs.).

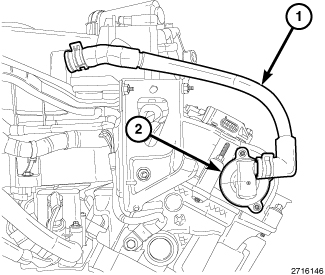

Fig 2: PCV Hose & PCV Valve
Courtesy of CHRYSLER GROUP, LLC
Install the PCV hose (1) between the upper intake manifold and the PCV valve (2).
