2.4L - Secondary Thermostat
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

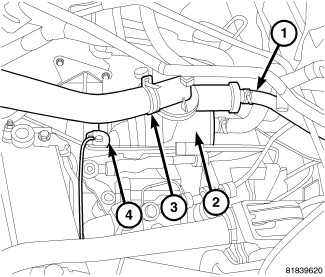

| 1 - COOLANT HOSE (REAR) |
| 2 - COOLANT ADAPTER |
| 3 - RADIATOR HOSE |
| 4 - RADIATOR HOSE (FRONT) |
- Partially drain cooling system. Refer to STANDARD PROCEDURE .
- Remove air filter housing.
- Disconnect coolant hoses (1) from rear of coolant adapter (2).
- Remove radiator hose (3).
- Remove radiator hose (4) from front of coolant adapter (2).
- Remove coolant adapter mounting bolts.
- Carefully slide coolant adapter off water pump inlet tube and remove coolant adapter (2) and secondary thermostat.
