2.0L Diesel

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

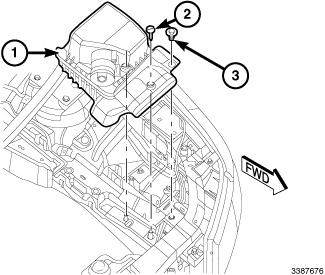

Fig 1: Air Cleaner Housing Assembly

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover.
Drain the coolant into a clean container. Refer to STANDARD PROCEDURE .
Remove the air cleaner housing assembly (1).

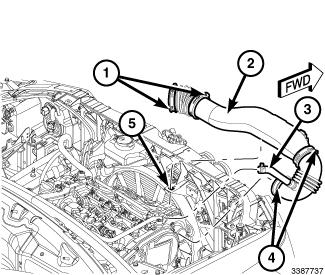

Fig 2: Clean Air Intake Hose Assembly & Front Mount
Courtesy of CHRYSLER GROUP, LLC
Remove the clean air intake hose assembly (2) from the front mount (5) and position aside.

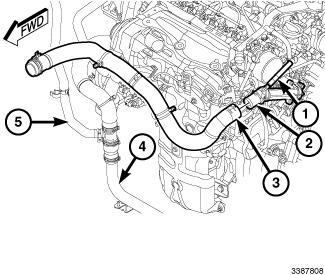

Fig 3: Coolant Recovery Container Return Line, Thermostat Housing & Return Hose
Courtesy of CHRYSLER GROUP, LLC
Remove the coolant recovery container return line (1) from the thermostat housing (2).
Remove the return hose (3) from the thermostat housing and position aside.

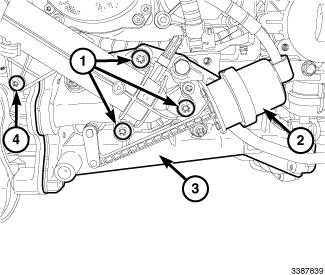

Fig 4: Thermostat Housing Mounting Bolts & Lower Thermostat Support Brace Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the thermostat housing mounting bolts (1).
Remove the lower thermostat support brace bolt (5).
