2.4L - Secondary Thermostat
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

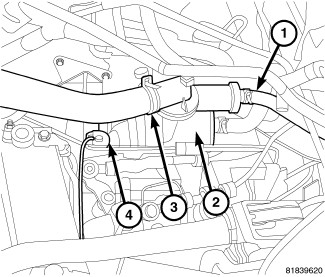

| 1 - COOLANT HOSE (REAR) |
| 2 - COOLANT ADAPTER |
| 3 - RADIATOR HOSE |
| 4 - RADIATOR HOSE (FRONT) |
- Position thermostat into the cylinder head.
- Inspect the water pump inlet tube O-rings for damage before installing the tube in the coolant adapter. Replace O-ring as necessary.
- Lubricate O-rings with soapy water.
- Position coolant adapter on water pump inlet tube and cylinder head.
- Install coolant adapter mounting bolts. Tighten bolts to 18.1 N.m (159 in. lbs.).
- Connect front coolant hose (1).
- Connect two rear coolant hoses (1).
- Connect radiator hose (3).
- Install air filter housing.
- Fill cooling system. Refer to STANDARD PROCEDURE .
