Coolant Adapter Mounted

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

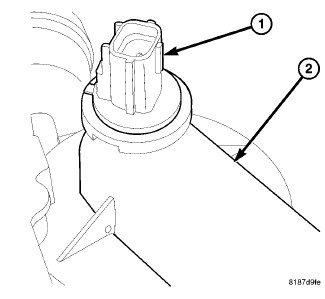

Fig 1: ECT Sensor & Coolant Adapter
GC0128548Courtesy of CHRYSLER GROUP, LLC
1 - ETC
2 - COOLANT ADAPTER
  1. Disconnect negative battery cable.
  2. Partially drain cooling system below level of ECT Sensor (1).
  3. Disconnect ECT Sensor electrical connector.
  4. Remove ECT Sensor (1).
