2.0L Diesel

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative battery cable.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
NOTE:
Drain the fluid in a clean container, free of debris. Save the fluid for re-use.
Drain the cooling system. Refer to STANDARD PROCEDURE .

Fig 1: Identifying Timing Belt, Tensioner & Pulleys
Courtesy of CHRYSLER GROUP, LLC
Remove the timing belt.

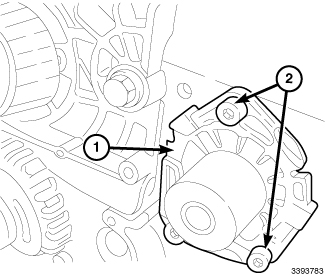

Fig 2: Water Pump Mounting Bolts & Water Pump
Courtesy of CHRYSLER GROUP, LLC
Remove the water pump mounting bolts (2).
Separate the water pump (1) and the gasket from the cylinder head.
