2.0L Diesel

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

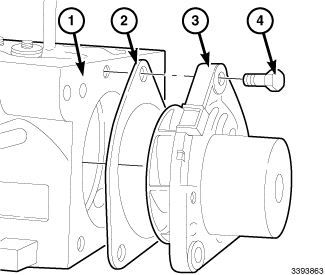

Fig 1: Water Pump, New Gasket & Cylinder Head

Courtesy of CHRYSLER GROUP, LLC

Position the water pump (3) with a new gasket (2) onto the cylinder head (1). Tighten the bolts (4) to 28 N.m (21 ft. lbs.).

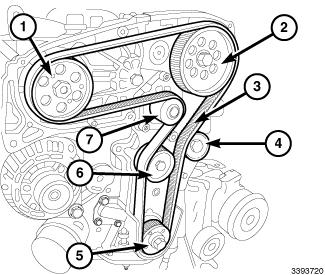

Fig 2: Drive Belt, Tensioner & Pulleys
Courtesy of CHRYSLER GROUP, LLC
Install the timing belt (3).
Evacuate air and refill cooling system. Refer to PUMP, WATER, STANDARD PROCEDURE .
Connect the negative battery cable.
Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
