Housing, Coolant Outlet: Removal: Removal
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

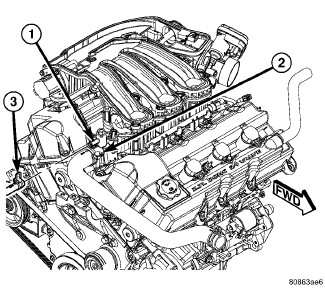

| 1 - BOLT (2) |
| 2 - BOLT (2) |
| 3 - COOLANT OUTLET CONNECTOR |
WARNING:
Do not remove pressure cap with the system hot and under pressure because serious burns from coolant can occur.
- Drain cooling system. Refer to STANDARD PROCEDURE .
- Disconnect engine coolant temperature sensor connector.
- Disconnect hoses at coolant outlet connector.
- Remove bolts attaching coolant outlet connector.
- Remove coolant outlet connector.
