Pressure System
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

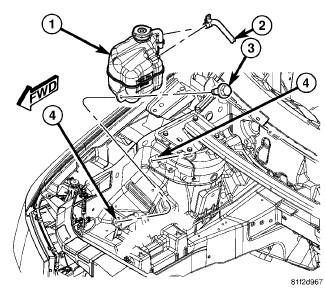

| 1 - COOLANT RECOVERY CONTAINER - PRESSURE SYSTEM |
| 2 - SUPPLY HOSE |
| 3 - MOUNTING BOLT |
| 4 - COOLANT RECOVERY CONTAINER MOUNTING TABS |
The coolant pressure container consists of a pressure chamber and a overflow chamber. The coolant pressure container is mounted in the right side engine compartment.
NOTE:
Coolant will normally be in the pressure chamber side of the coolant bottle. The overflow chamber should normally be empty
