Bottle, Coolant Recovery: Description: Non-Pressure
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

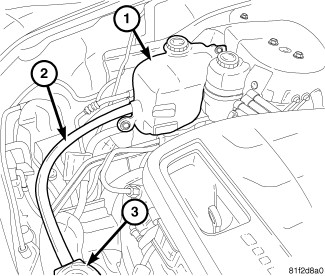

| 1 - COOLANT RECOVERY CONTAINER |
| 2 - OVERFLOW HOSE |
| 3 - RADIATOR PRESSURE CAP |
The coolant recovery system used on 3.6L/2.4L engine consists of a coolant recovery container and an overflow hose that is connected to the radiator. The coolant recovery container is mounted in the right side engine compartment.
