2.0L Diesel

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

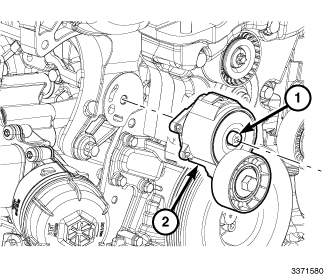

Fig 1: Tensioner Mounting Bolt
GC0147831Courtesy of CHRYSLER GROUP, LLC
  1. Install the spring tensioner pulley and bolt. Tighten bolt to 50 N.m (37 ft. lbs.).
    Fig 2: Accessory Drive Belt Components
    GC0147834Courtesy of CHRYSLER GROUP, LLC
  2. Install the accessory drive belt (5). Refer to BELT, SERPENTINE, INSTALLATION .
