Pulley, Idler: Installation: 2.4L

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

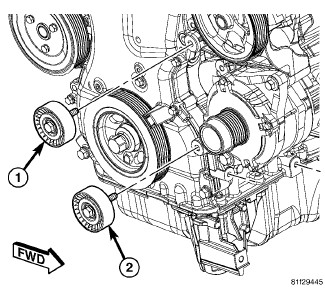

Fig 1: Accessory Drive Belt Idler Pulley - 2.4L
GC0098605Courtesy of CHRYSLER GROUP, LLC
1 - UPPER IDLER PULLEY
2 - LOWER IDLER PULLEY
  1. Install the lower idler pulley (2) and bolt.
  2. Tighten bolt to 50 N.m (37 ft. lbs.).
  3. Install the upper idler pulley (1) and bolt.
  4. Tighten bolt to 35 N.m (25 ft. lbs.).
  5. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
