2.0L Diesel

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

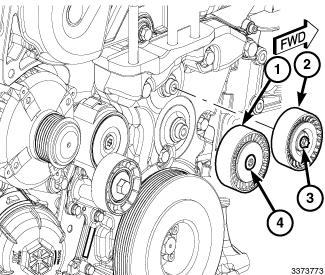

Fig 1: Idler Pulley Mounting Bolt & Idler Pulley
GC0147850Courtesy of CHRYSLER GROUP, LLC
  1. Position and install the idler pulley (1, 2) and bolt (3, 4) from under the vehicle. Tighten bolt to 50 N.m (37 ft. lbs.).

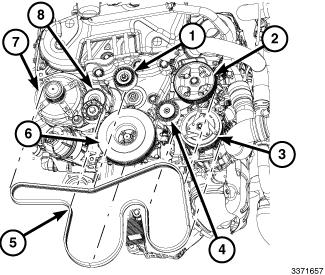

    Fig 2: Accessory Drive Belt Components
    GC0147834Courtesy of CHRYSLER GROUP, LLC
  2. Install the accessory drive belt (5). Refer to BELT, SERPENTINE, REMOVAL .
  3. Connect the negative battery cable.
