2.0L Diesel Engine

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Accessory Drive Belt Components

Courtesy of CHRYSLER GROUP, LLC

NOTE:

When installing accessory drive belt, be sure belt is routed around all accessories correctly.

Install belt over all pulleys.
CAUTION:
Do not let the tensioner arm snap back to the freearm position, severe damage may occur to the tensioner.
Using a wrench, rotate the cam tensioner (5) until the locking pin can be removed from the tensioner (8).
Check the belt for proper alignment.

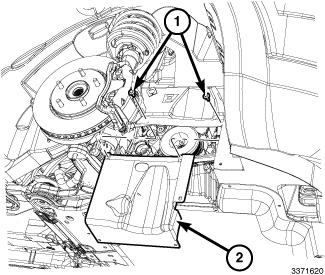

Fig 2: Lower Splash Belt Shield
Courtesy of CHRYSLER GROUP, LLC
Install the lower belt splash shield (2).

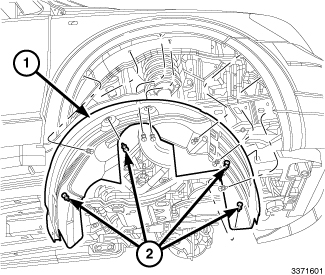

Fig 3: Inner Fender Splash Shield
Courtesy of CHRYSLER GROUP, LLC
Install the Inner fender splash shield (1).
Install the right side front wheel.
Lower vehicle from hoist.
Connect the negative battery cable.
