Section 250 (Rear Axle): Removal: Removal

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

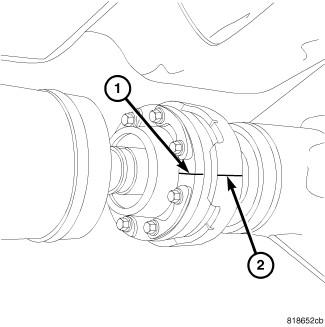

Fig 1: Rear Reference Mark

Courtesy of CHRYSLER GROUP, LLC

With vehicle in neutral, position vehicle on hoist.
Position and secure a lift under the axle.
Mark propeller shaft flange (1) and axle pinion flange (2) for installation reference.
Remove propeller shaft and suspend under the vehicle.

Fig 2: Vent Hose
Courtesy of CHRYSLER GROUP, LLC
Remove vent hose (1) from the axle tube (2).

Fig 3: Tru-Lok Harness
Courtesy of CHRYSLER GROUP, LLC
Disconnect Tru-Lok wiring connectors (1, 2).

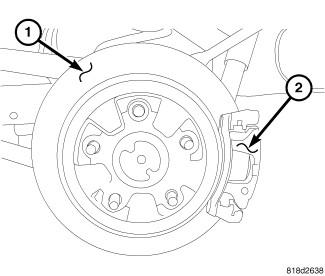

Fig 4: Rear Disc Brake Rotor & Caliper
Courtesy of CHRYSLER GROUP, LLC
Remove brake calipers (2) and rotors (1) from axle.

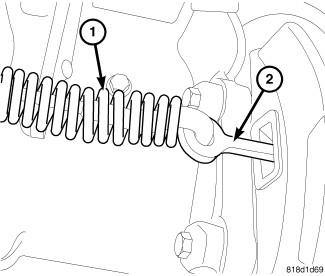

Fig 5: Cable At Support Plate
Courtesy of CHRYSLER GROUP, LLC
Remove park brake cables (1) from axle (2).
NOTE:
Park brake cables are self adjusting and must be locked out before removal.

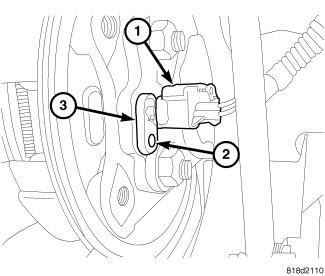

Fig 6: Rear Wheel Speed Sensor
Courtesy of CHRYSLER GROUP, LLC
Remove brake sensors connector (1) from sensors (2).

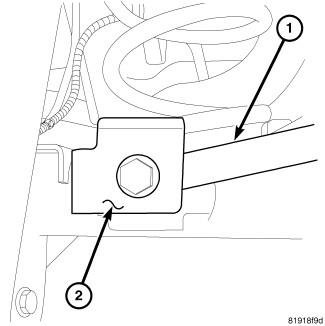

Fig 7: Track Bar
Courtesy of CHRYSLER GROUP, LLC
Remove track bar (1) from axle bracket (2)

Fig 8: Link
Courtesy of CHRYSLER GROUP, LLC
Remove stabilizer bar links (1) from axle brackets (2).

Fig 9: Shock Absorber
Courtesy of CHRYSLER GROUP, LLC
Remove shock absorbers (1) from axle brackets (2).

Fig 10: Upper Control Arms
Courtesy of CHRYSLER GROUP, LLC
Remove upper control arms (1) from axle brackets (2).

Fig 11: Lower Control Arms
Courtesy of CHRYSLER GROUP, LLC
Loosen lower control arm (1) bolts and lower axle enough to remove coil springs and spring insulators.
Remove lower control arm (1) from axle brackets (2).
Lower and remove the axle.
