Lamp, Tail Stop Turn: Removal: Lamp: Inner

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

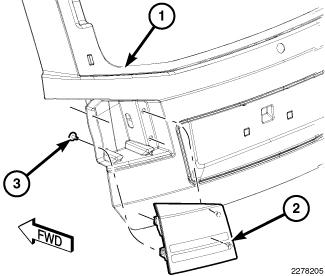

Fig 1: Inner Rear Lamp Unit
GC0128625Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Open the liftgate (1) to access and remove the two screws (3) that secure the outboard side of the inner rear lamp unit (2) to the liftgate lamp opening.
  3. Pull the inboard side of the inner rear lamp unit rearward far enough to disengage the two locating pins on the back of the lamp housing from the plastic grommets in the liftgate lamp opening.
  4. Pull the lamp away from the vehicle far enough to access and disconnect the two liftgate wire harness connectors from the LED lighting element and the bulb socket connector receptacles on the back of the lamp housing.
  5. Remove the lamp from the vehicle.
