Outer Lamp

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

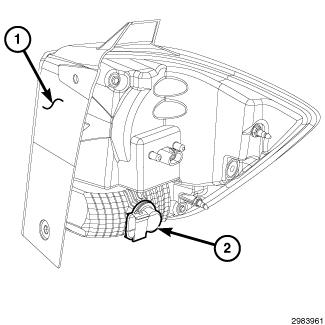

Fig 1: Except With LED Lighting

Courtesy of CHRYSLER GROUP, LLC

NOTE:

In vehicles manufactured for domestic markets except with LED lighting, the outer rear lamp unit contains a single bulb (1) for tail/stop/rear side marker/turn signal functions. In vehicles manufactured for export markets except with LED lighting, the outer rear lamp unit contains two bulbs. They are the tail/stop/rear side marker (1) and the turn signal (2). The service procedures for each bulb are the same, only the bulb sizes and types may differ.

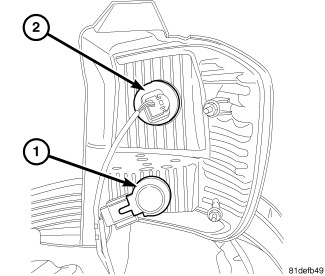

Fig 2: With LED Lighting

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate battery negative cable.
Remove the outer rear lamp unit from the vehicle. Refer to LAMP, TAIL STOP TURN, REMOVAL .
Firmly grasp the bulb socket (1 or 2) on the back of the outer rear lamp unit housing and rotate it counterclockwise about 30 degrees to unlock it.
Pull the socket and bulb straight out of the lamp.
Pull the base of the bulb straight out of the socket.
