Inner Lamp

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

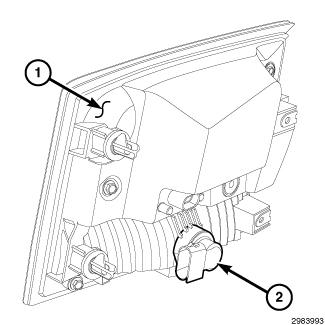

Fig 1: Except With LED Lighting

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Except with LED lighting, the inner rear lamp unit contains two bulbs. The upper socket contains the tail lamp bulb, while the lower socket contains the backup lamp bulb. The service procedures for each bulb are the same, only the bulb sizes and types may differ.

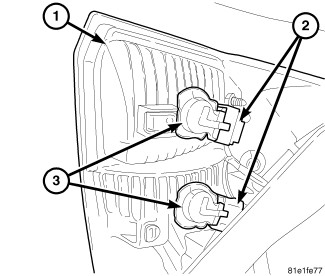

Fig 2: With LED Lighting

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Remove the inner rear lamp unit (1) from the vehicle. Refer to LAMP, TAIL STOP TURN, REMOVAL .
Firmly grasp the bulb socket (2) on the back of the lamp housing and rotate it counterclockwise about 30 degrees to unlock it.
Pull the socket and bulb straight out of the lamp.
Pull the base of the bulb straight out of the socket.
