Lamp, License Plate: Installation: Bulb
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

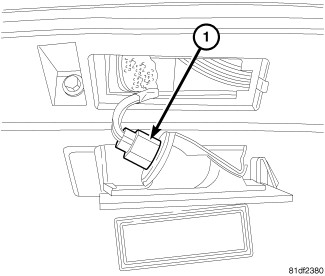

- Align the base of the license plate lamp bulb with the socket (1).
- Push the bulb straight into the socket until the base is firmly seated.
- Align the socket and bulb with the keyed opening on the top of the license plate lamp housing.
- Insert the bulb and socket into the housing until the socket is firmly seated.
- Rotate the socket clockwise about 30 degrees to lock it into place.
- Reinstall the lamp into the mounting hole on the underside of the liftgate handle and light bar assembly. Refer to LAMP, LICENSE PLATE, INSTALLATION .
