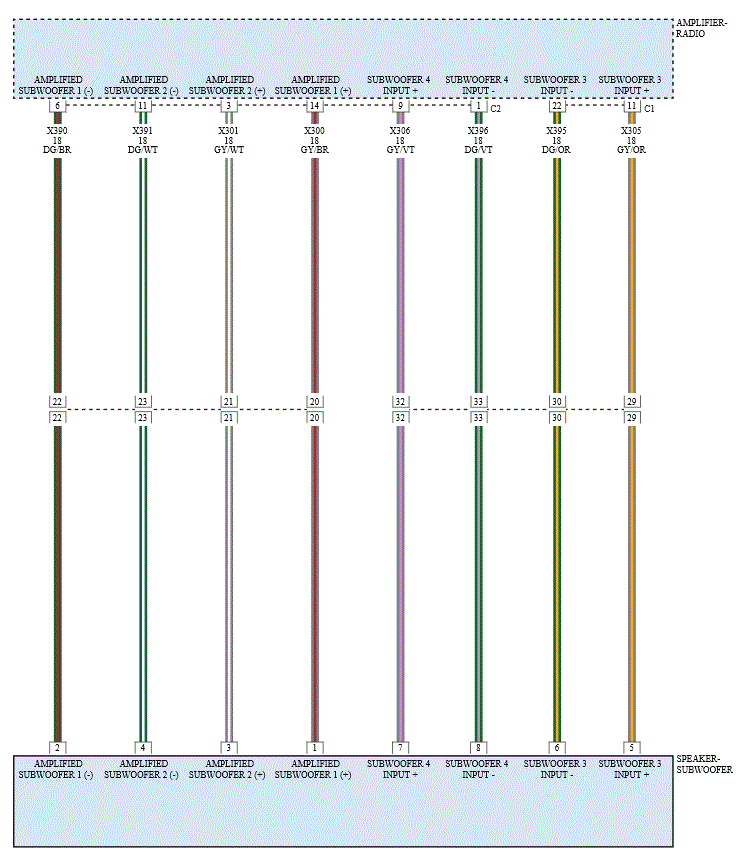

Fig 1: Radio Amplifier & Subwoofer Speaker Amplified Subwoofer 1 & 2 And Subwoofer Input 3 & 4 Circuit Diagram
Courtesy of CHRYSLER GROUP, LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
