Section 236 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Installation: Subwoofer
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connector.

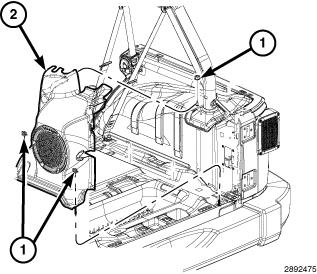

- Install the subwoofer (2) into the vehicle.
- Install and tighten the mounting fasteners (1).
- Position the load floor cover tabs into the floor slots fully and close the load floor cover.
- Connect the negative battery cable.
