Sound Bar

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

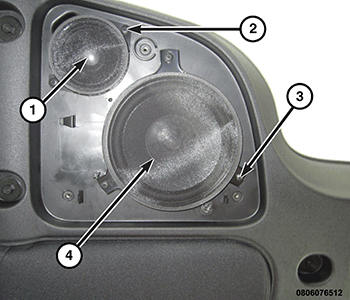

Fig 1: Identifying Speakers & Screws

Courtesy of CHRYSLER GROUP, LLC

Connect the speaker electrical connector.
Install the removed speaker (1 or 4) and tighten the correlating screws (2 or 3).

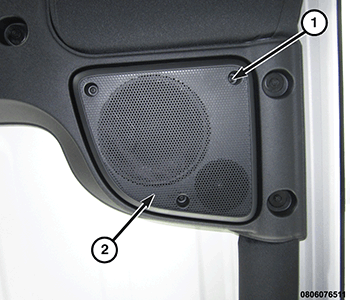

Fig 2: Identifying Speaker Grille Cover & Screws
Courtesy of CHRYSLER GROUP, LLC
Install the speaker grille (2) and tighten the speaker grille cover screws (1).
Connect the battery negative cable.
