Instrument Panel - Passenger Side

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the speaker through the glove box opening.

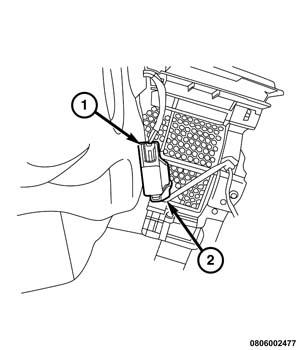

    Fig 1: Speaker Electrical Connector & Instrument Panel Wiring Harness Connector
    GC0155080Courtesy of CHRYSLER GROUP, LLC
  2. Connect the speaker electrical connector (1) to the instrument panel wiring harness connector (2).

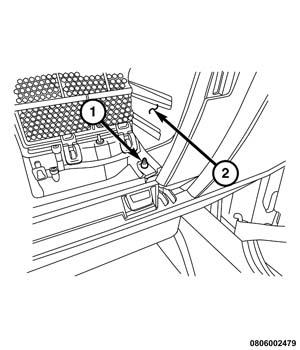

    Fig 2: Speaker Fastener & Glove Box Opening
    GC0155091Courtesy of CHRYSLER GROUP, LLC
  3. Install the speaker (2) fastener (1) through the glove box opening and securely tighten.

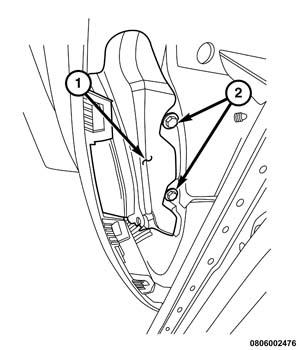

    Fig 3: Speaker & Fasteners
    GC0155079Courtesy of CHRYSLER GROUP, LLC
  4. Install the two speaker (1) fasteners (2) through the end cap opening and securely tighten.
  5. Install the instrument panel end cap.
  6. Install the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
  7. Connect the negative battery cable.
