Instrument Panel - Drivers Side

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Side Instrument Panel

Courtesy of CHRYSLER GROUP, LLC

Install the speaker by carefully pulling the left side of the instrument panel (1) outward until there is sufficient room to install the speaker through the end cap area.

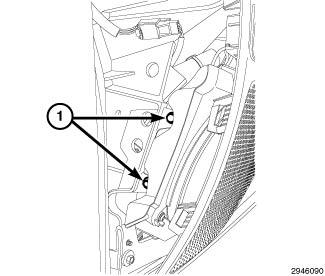

Fig 2: Lower Speaker Mounting Retainer
Courtesy of CHRYSLER GROUP, LLC
Connect the speaker electrical connector.
Install the driver side lower speaker mounting retainer (1).

Fig 3: Speaker Mounting Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the speaker mounting fasteners (1).
Connect the electrical connector.

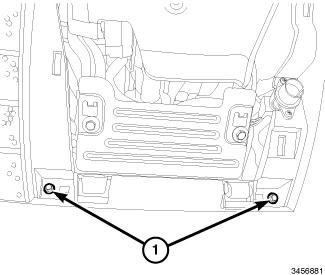

Fig 4: Lower Instrument Panel Retainer
Courtesy of CHRYSLER GROUP, LLC
Install the driver side lower instrument panel retainer (1) next to the DLC connector.

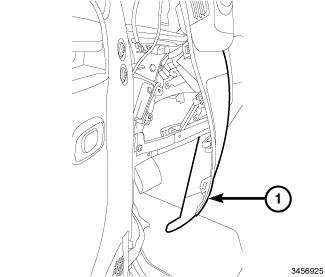

Fig 5: Steering Column Opening Cover Retainers
Courtesy of CHRYSLER GROUP, LLC
Install the instrument panel cover steering column opening cover retainers (1).

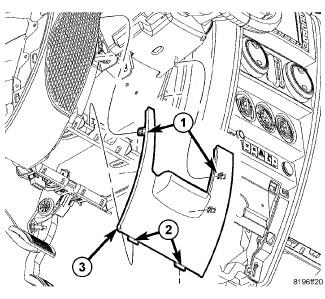

Fig 6: Removing/Installing Steering Column Opening Cover
Courtesy of CHRYSLER GROUP, LLC
Install the reinforcement plate and steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .

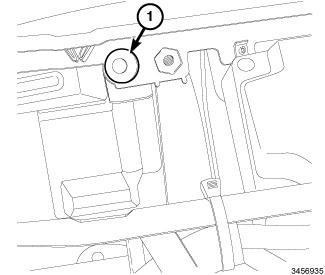

Fig 7: End Cap
Courtesy of CHRYSLER GROUP, LLC
Install the instrument panel end cap (1).
Connect the negative battery cable.
