Section 230 (Charging System (Service Information)): Generator: Installation: 3.6L

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

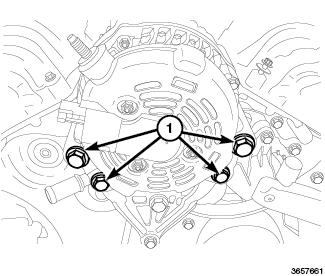

Fig 1: Generator Mounting Retainers
GC0154080Courtesy of CHRYSLER GROUP, LLC
  1. Install the generator into the vehicle.
  2. Install the generator mounting retainers (1).

    Tighten to the top retainers to 54 N.m (43 ft. lbs.)

    Tighten to the bottom retainers to 30 N.m (22 ft. lbs.)

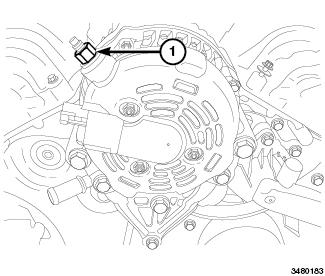

    Fig 2: B+ Retainer
    GC0153986Courtesy of CHRYSLER GROUP, LLC
  3. Position back the B+ cable onto the generator stud.
  4. Install the B+ retainer (1).

    Tighten to 18 N.m (13 ft. lbs)

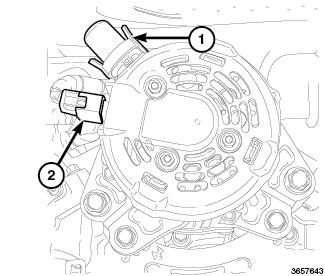

    Fig 3: Generator Electrical Connector & B+ Battery Stud Cover
    GC0154079Courtesy of CHRYSLER GROUP, LLC
  5. Install the generator electrical connector (2) and install the B+ battery stud cover (1).

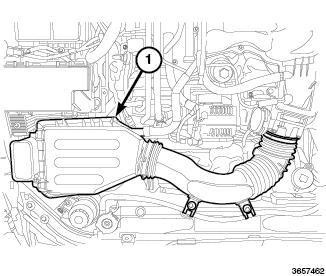

    Fig 4: Air Cleaner Body
    GC0154078Courtesy of CHRYSLER GROUP, LLC
  6. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
  7. Install the air cleaner body (1). Refer to AIR CLEANER, INSTALLATION .
    Fig 5: Engine Cover
    GC0153999Courtesy of CHRYSLER GROUP, LLC
  8. Install the engine cover.
  9. Connect the negative battery cable.
  10. Close the hood.
