Section 230 (Charging System (Service Information)): Generator: Installation: 2.8L

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

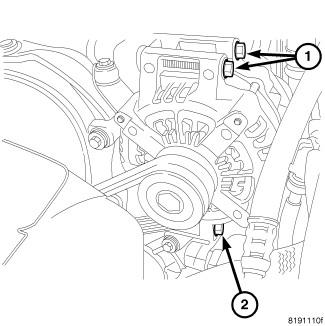

Fig 1: Generator Mounting - 2.8L Diesel
GC0130762Courtesy of CHRYSLER GROUP, LLC
  1. Position the generator to engine. Install two upper mounting bolts (1).
  2. Install the two lower mounting bolts (2).
  3. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .

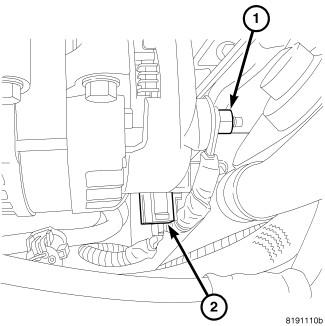

    Fig 2: Generator Electrical Connector - 2.8L Diesel
    GC0130761Courtesy of CHRYSLER GROUP, LLC
  4. Snap field wire connector (2) into generator.
  5. Install the negative battery cable to battery.
