Condenser, A/C: Description: Description
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

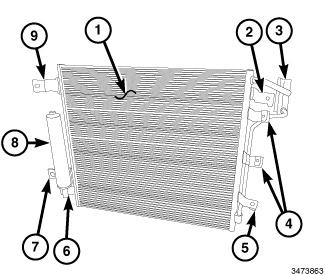

The A/C condenser (1) is located in the front of the engine compartment behind the grille. The A/C condenser is a heat exchanger that allows the high-pressure refrigerant gas being discharged by the A/C compressor to give up its heat to the air passing over the condenser fins, which causes the refrigerant to cool and change to a liquid state.
The A/C condenser is equipped with four mounting tabs (2, 5, 7 and 9), a tapping block (3) for the refrigerant lines, a tapping block (6) for the receiver/drier (8) and mounting brackets for the automatic transmission cooler (4), when equipped with automatic transmission,
