Outlet, Air: Installation: Installation
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the foam seal on the air outlet is deformed or damaged, the seal must be replaced.
NOTE:

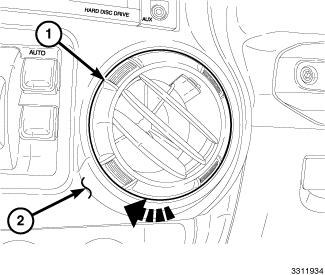

Center-right outlet shown. Other outlets similar.
- Install the air outlet (1) into the instrument panel (2).
- Rotate the air outlet clockwise until fully engaged to the instrument panel.
