Housing-Air Inlet

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

LHD model shown. RHD model similar.

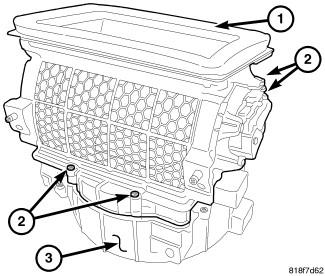

Fig 1: HVAC Housing, Air Inlet Housing & Screws

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If the foam seal on the top of the inlet housing is deformed or damaged, the seal must be replaced.

Position the air inlet housing (1) onto the top of the HVAC housing (3).
Install the four screws (2) that secure the air inlet housing to the HVAC housing. Tighten the screws to 1.2 N.m (10 in. lbs.).
If equipped, install the cabin air filter. Refer to FILTER, CABIN AIR, INSTALLATION .
Install the HVAC housing assembly. Refer to HOUSING-HVAC, INSTALL .
