Control, A/C And Heater: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Take the proper precautions to protect the front face of the center bezel from cosmetic damage while performing this procedure.

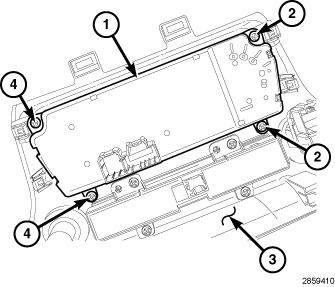

Fig 1: Instrument Panel Center Bezel, Four Screws & A/C-heater Control
GC0148163Courtesy of CHRYSLER GROUP, LLC
NOTE:

ATC control shown. MTC control similar.

  1. Position the A/C-heater control (1) onto the back of the center bezel (3).
  2. Install the four screws (2 and 4) that secure the A/C-heater control to the bezel. Tighten the screws to 2 N.m (17 in. lbs.).
  3. Install the center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
  4. Reconnect the negative battery cable.
    NOTE:

    When installing a new A/C-heater control, or reinstalling the original control, the A/C-heater control will automatically run the Actuator Calibration function when the ignition switch is initially turned to ON. However, the Actuator Calibration function must be manually initiated using a scan tool if the A/C-heater control was previously installed in another vehicle.

  5. If required, initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
