Standard Procedure - Drain And Fill

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
  1. With vehicle in neutral, position vehicle on hoist.
  2. Loosen the exhaust as necessary to gain access to drain plug. Refer to CONVERTER, CATALYTIC, REMOVAL .

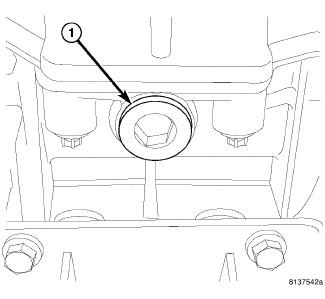

    Fig 1: Drain Plug
    GC0085505Courtesy of CHRYSLER GROUP, LLC
  3. Remove drain plug (1) and drain fluid.

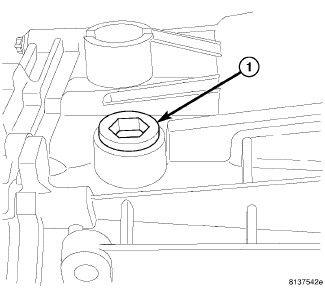

    Fig 2: Fill Plug
    GC0085506Courtesy of CHRYSLER GROUP, LLC
  4. Install drain plug and remove fill plug (1).
  5. Fill transmission with 1.5 L (3.17 pts.) of Mopar® Manual Transmission Lubricant MS-9224 or to the bottom of the fill plug (1) hole.
  6. Install the exhaust. Refer to CONVERTER, CATALYTIC, INSTALLATION .
