Standard Flywheel

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

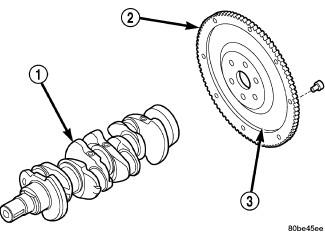

Fig 1: Flywheel, Ring Gear & Crankshaft
GC0130703Courtesy of CHRYSLER GROUP, LLC

The standard flywheel (3) is a heavy plate bolted to the rear of the crankshaft (1). The flywheel incorporates the ring gear (2) to mesh with the starter. The rear face of the flywheel serves as the driving member to the clutch disc.
