2.8L Diesel
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

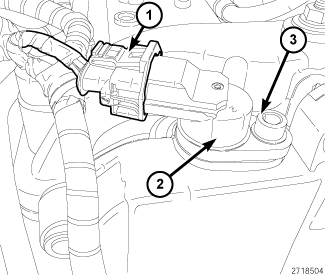

- Install Camshaft Position (CMP) sensor (2). Tighten bolt (3) to 11 N.m (97 in. lbs.).
- Connect the CMP sensor wire harness connector (1).
- Connect the negative battery cable.
