Valve, Exhaust Gas RECIRCULATION (EGR) Airflow Control: Installation: Installation

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

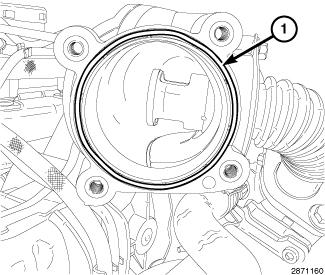

Fig 1: O-Ring Gasket

Courtesy of CHRYSLER GROUP, LLC

Remove the (special tool #10368, Set, Universal Protective Cap) from intake manifold opening.
Clean the gasket surface areas.
Install a new O-ring gasket (1).

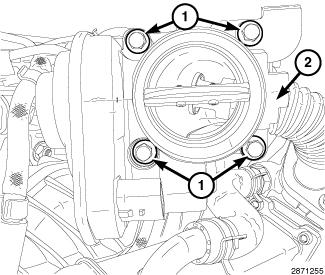

Fig 2: Bolts & EGR Air Control Valve
Courtesy of CHRYSLER GROUP, LLC
Install EGR air control valve (2). Tighten bolts (1) to 11 N.m (97 in. lbs.).

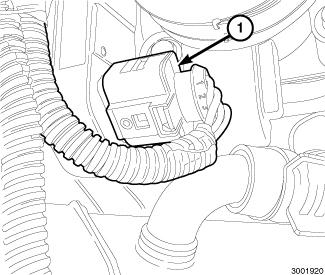

Fig 3: EGR Air Flow Control Valve Connector
Courtesy of CHRYSLER GROUP, LLC
Connect air control valve harness (1).
Connect air tube to air control valve and securely tighten clamp.
Connect the negative battery cable.
