Solenoid, Evaporative Emissions Purge: Description: Description
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

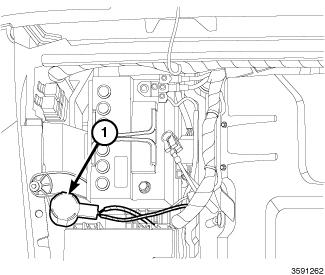

The EVAP canister purge solenoid (1) is located in the engine compartment attached to the battery tray.
The Powertrain Control Module (PCM) operates the EVAP canister purge solenoid depending upon engine operating conditions.
