2.8L Diesel (Manual Trans)

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

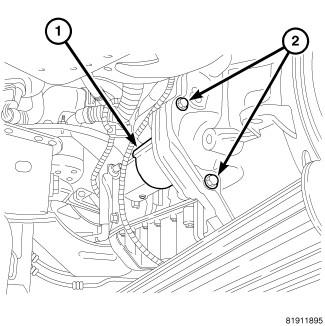

Fig 1: Starter Mounting 2.8L Diesel
GC0085600Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate negative battery cable.
  2. Raise and support vehicle.
  3. While supporting starter motor (1), remove two bolts (2) securing starter motor to transmission.

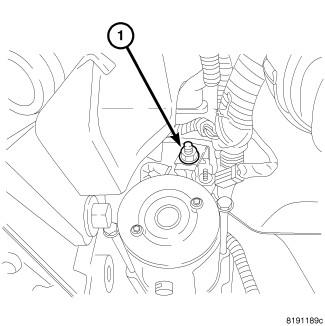

    Fig 2: B+ Cable & Retainer
    GC0130768Courtesy of CHRYSLER GROUP, LLC
  4. Lower starter motor far enough to access and remove nut (1) securing battery cable to starter solenoid B(+) terminal stud. Always support starter motor during this process. Do not let starter motor hang from wire harness.
  5. Remove battery cable at starter.
  6. Disconnect solenoid terminal wire harness connector from starter solenoid.
  7. Remove starter motor.
