2.8L Diesel (Auto Trans)

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

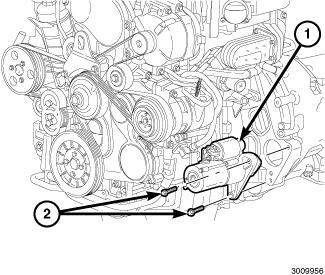

Fig 1: Starter Motor & Two Bolts
GC0148263Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate negative battery cable.
  2. While supporting the starter motor (1), remove the two bolts (2) securing the starter motor to the transmission.
    Fig 2: B+ Cable & Retainer
    GC0130768Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Always support starter motor during this process. Do not let starter motor hang from wire harness.

  3. Remove the B+ cable retainer (1) and remove the B+ cable.
  4. Disconnect the solenoid terminal connector from starter solenoid.
  5. Remove the starter motor.
