Starter Solenoid

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Certain vehicles with certain engines may require starter motor removal for the following test.

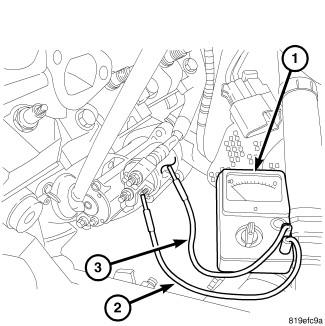

Fig 1: Solenoid Continuity Test
GC0082803Courtesy of CHRYSLER GROUP, LLC
  1. If necessary, remove starter motor from vehicle. Refer to Starter Motor REMOVAL  and INSTALLATION  .
  2. Disconnect solenoid connector wiring from starter motor.
  3. Check for continuity between solenoid terminal (2) and solenoid case (3). There should be continuity. If not OK, replace faulty starter motor assembly.
