Single Switch

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

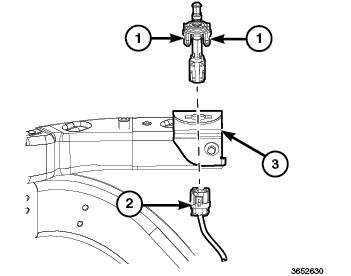

Fig 1: Mounting Bracket, Two Remote Start Hood Ajar Switch Latch Tabs, Mounting Bracket & Harness Connector
GC0148398Courtesy of CHRYSLER GROUP, LLC
  1. Open the hood.
  2. Disconnect and isolate the negative cable from the battery.
  3. Disconnect the IBS/negative battery cable assembly from the negative battery post.
  4. From the top of the mounting bracket (3) in the left front corner of the engine compartment, squeeze the two remote start hood ajar switch latch tabs (1) together and pull the switch upward.
  5. Pull the remote start hood ajar switch up through the hole in the mounting bracket (3) far enough to access and disconnect the harness connector (2) from the switch connector receptacle.
  6. Remove the remote start hood ajar switch from the engine compartment.
