Single Bracket

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

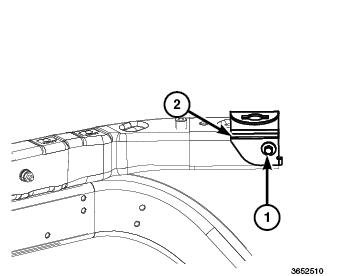

Fig 1: Retainer & Remote Start Hood Ajar Switch Bracket
GC0148397Courtesy of CHRYSLER GROUP, LLC
  1. Position the remote start hood ajar switch bracket (2) to the left front load beam in the engine compartment.
  2. Install and tighten the screw (1) that secures the bracket to the load beam. Tighten the screw to 8 N.m (71 in. lbs.).

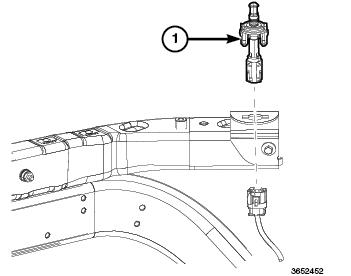

    Fig 2: Remote Start Hood Ajar Switch
    GC0148396Courtesy of CHRYSLER GROUP, LLC
  3. Reinstall the remote start hood ajar switch (1) into the mounting bracket. Refer to SWITCH, HOOD AJAR, INSTALLATION .
  4. Reconnect the negative cable to the battery.
