Dual Switch

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

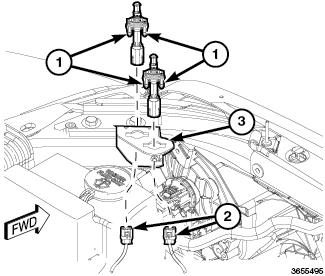

Fig 1: Mounting Bracket, Two Remote Start And Stop/Start Switch Latch Tabs & Harness Connector
GC0148403Courtesy of CHRYSLER GROUP, LLC
  1. Position the Remote Start and Stop/Start switches near the hole in the mounting bracket (3) on the front of the left load beam (1) in the left front corner of the engine compartment.
  2. Route the harness connector (2) through the switch mounting bracket (3) and reconnect it to the switch connector receptacles.
  3. From the top of the mounting bracket, press the switch downward into the mounting hole until the integral switch latch tabs lock it into place.
  4. Connect the IBS/negative battery cable assembly to the negative battery post.
  5. Reconnect the negative cable to the battery.
  6. Close and latch the hood.
