Dual Bracket

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

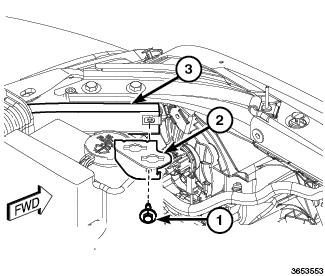

Fig 1: Bracket Mounting Retainer, Stop/Start Switch Bracket & Front Load Beam
GC0148401Courtesy of CHRYSLER GROUP, LLC
  1. Position the remote start and stop/start hood ajar switch mounting bracket (2) to the left front load beam (3) in the engine compartment.
  2. Install and tighten the screw (1) that secures the mounting bracket to the load beam (3). Tighten the screw to 8 N.m (71 in. lbs.).

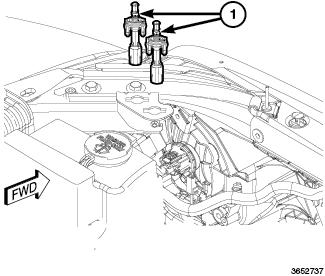

    Fig 2: Start And Stop/Start Switches
    GC0148399Courtesy of CHRYSLER GROUP, LLC
  3. Reinstall the remote start and stop/start hood ajar switches into the mounting bracket. Refer to SWITCH, HOOD AJAR, INSTALLATION .
  4. Reconnect the negative cable to the battery.
