Gasoline Engine
WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

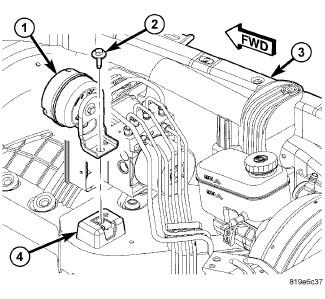

- Check to be certain that the U-nut on the component tray stanchion (4) is in good condition and properly installed.
- Position the alarm siren module and bracket (1) to the component tray as a unit.
- Install and tighten the screw (2) that secures the siren mounting bracket to the U-nut in the component tray. Tighten the screw to 8 N.m (71 in. lbs.).
- Reconnect the engine compartment wire harness connector to the connector receptacle of the siren.
- Reconnect the negative cable to the battery.
NOTE:
If the alarm siren module has been replaced with a new unit, a diagnostic scan tool MUST be used to initialize and configure the new unit in the Intrusion Transceiver Module (ITM) before the Vehicle Theft Security System (VTSS) can operate as designed. Follow the programming steps outlined in the diagnostic scan tool for INITIALIZE SIREN under MISCELLANEOUS FUNCTIONS for the INTRUSION TRANSCEIVER MODULE/ITM menu item as appropriate.
