Seal, Sunroof Glass: Removal: Removal
WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
- Remove sunroof glass panel. Refer to GLASS, SUNROOF, REMOVAL .
- Place glass panel on clean work area with the top side up. Support the glass assembly from underside to avoid bending or otherwise damaging the mounting tabs.

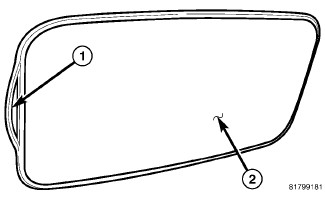

- Grasp the seal (1) and pull seal away from the glass panel (2). The seal is a one piece seal.
