Seat Back, Third Row: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Seat Back Mounting Fasteners
GC0129027Courtesy of CHRYSLER GROUP, LLC
  1. Remove the seat cover and cushion. Refer to COVER, SEAT CUSHION, THIRD ROW, REMOVAL .
  2. Remove the retainers on the seat back gap hider from the rear storage box.
  3. Remove the front seat back mounting fasteners (1).

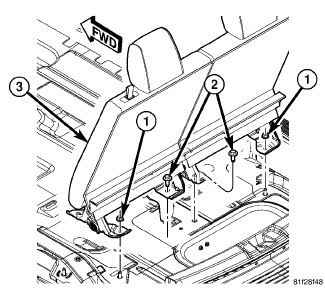

    Fig 2: Rear Seat Back Mounting Fasteners
    GC0129028Courtesy of CHRYSLER GROUP, LLC
  4. Remove the rear seat back mounting fasteners (1 and 2).
  5. Remove the seat back from the vehicle.
