Plate, Carrier: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Trim Panel From Door Assembly
GC0128982Courtesy of CHRYSLER GROUP, LLC
  1. Remove the door trim panel. Refer to PANEL, REAR DOOR TRIM, INSTALLATION .

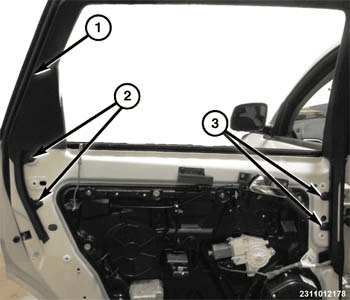

    Fig 2: Glass Moulding, Push Pin & Fasteners
    GC0158501Courtesy of CHRYSLER GROUP, LLC
  2. Remove the push pin fasteners (2 and 3).
  3. Remove the window surround moulding (1) from the window opening.

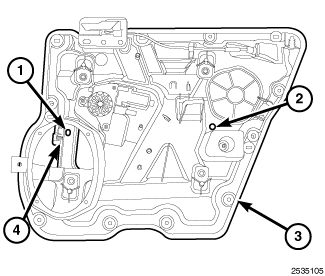

    Fig 3: Glass Lift Plates
    GC0128980Courtesy of CHRYSLER GROUP, LLC
  4. Remove the door speaker. Refer to SPEAKER, REMOVAL .
  5. Drill a hole large enough to get a small punch through into the carrier plate (2).
  6. Connect the window switch.
  7. Lower glass to approximately mid position and line up the glass lift plates (4) with the holes (1 and 2).
  8. Using a punch or equivalent, press tabs releasing glass from window regulator (1 and 2).
  9. Slide the glass up into the channel fully and apply tape to hold it up out of the way.

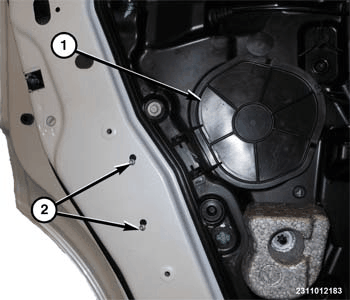

    Fig 4: Access Door & Rear Lower Glass Fasteners
    GC0158491Courtesy of CHRYSLER GROUP, LLC
  10. Loosen the rear lower glass channel fasteners (2), it is not necessary to remove the fasteners completely.
  11. Open the access door (1) and remove the lower glass channel.
    Fig 5: Removing Exterior Door Handle
    GC0155593Courtesy of CHRYSLER GROUP, LLC
  12. Remove the outer door handle. Refer to HANDLE, EXTERIOR, REMOVAL .
    Fig 6: Exterior Door Handle Fastener
    GC0155627Courtesy of CHRYSLER GROUP, LLC
  13. Remove the fastener (1) located in the exterior door handle pocket.

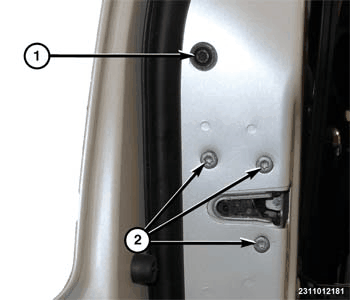

    Fig 7: Door Latch & Door Handle Bracket Fasteners
    GC0158498Courtesy of CHRYSLER GROUP, LLC
  14. Remove the door latch fasteners (2).
  15. Remove the door handle bracket fastener (1).

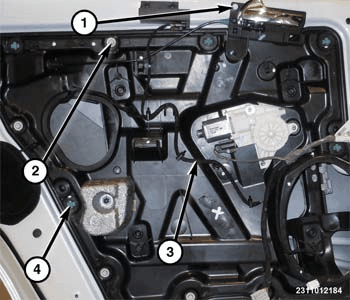

    Fig 8: Inner Door Handle Fastener, Harness, Clips & Fasteners
    GC0158493Courtesy of CHRYSLER GROUP, LLC
  16. Remove the inner door handle fastener (1).
  17. Disconnect the electrical connectors on the exterior of the carrier plate and release the harness (3) from the routing clips and tabs.
  18. Remove the six carrier plate fasteners (2).
  19. Unfasten the five carrier plate mounting clips (4) by turning 1/4 turn.
  20. Carefully remove the carrier plate by slightly pulling the bottom out and lowering the top while sliding forward.
  21. Disconnect the wiring connector from the latch.
  22. Remove the wiring harness (3) from the carrier plate.
  23. Remove the carrier plate from the door.
