Manifold, Intake: Removal: Lower

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

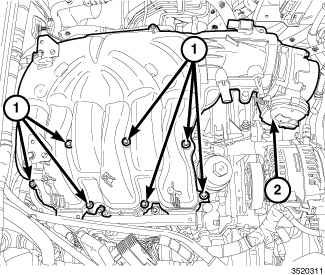

Fig 1: Upper Intake Manifold & Fasteners

Courtesy of CHRYSLER GROUP, LLC

WARNING:

The fuel system is under constant pressure even with engine off. Before servicing the fuel rail, fuel system pressure must be released.

Release fuel system pressure. Refer to FUEL SYSTEM PRESSURE RELEASE .
Disconnect and isolate the negative battery cable.
Remove the air cleaner body and upper intake manifold (2). Refer to MANIFOLD, INTAKE, REMOVAL .

Fig 2: Intake Ports, Insulator & Alignment Posts
Courtesy of CHRYSLER GROUP, LLC
Remove the insulator (2) from the LH cylinder head cover.

Fig 3: Fuel Supply Line And Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the fuel supply hose (2) from the fuel rail. Refer to FITTING, QUICK CONNECT .
Disconnect the fuel injector electrical connectors (1).

Fig 4: Injection/Ignition Harness Retainer & Main Wire Harness Retainer
Courtesy of CHRYSLER GROUP, LLC
Disengage the injection/ignition harness retainer (1) form the rear of the lower intake manifold.
Disengage the main wire harness retainer (2) form the rear of the lower intake manifold.

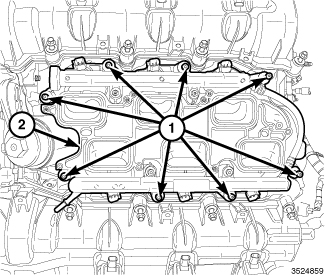

Fig 5: Lower Intake Manifold & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the eight lower intake manifold attaching bolts (1).
Remove the lower intake manifold (2) with the fuel injectors and fuel rail.

Fig 6: Lower Intake Manifold To Cylinder Head Seals
Courtesy of CHRYSLER GROUP, LLC
Remove and discard the six lower intake manifold to cylinder head seals (1).

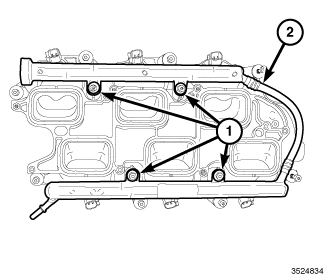

Fig 7: Bolts & Fuel Rail
Courtesy of CHRYSLER GROUP, LLC
If required, remove the fuel rail (2) and fuel injectors from the lower intake manifold. Refer to RAIL, FUEL, REMOVAL .
