Pan, Oil: Removal: Upper

WARNING: This page is about a different car, the 2016 Jeep Wrangler and 2015 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover. Refer to COVER, ENGINE, REMOVAL .

Fig 1: Oil Level Indicator & Bolt
Courtesy of CHRYSLER GROUP, LLC
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the right front wheelhouse inner splash shield. Refer to SHIELD, SPLASH, WHEELHOUSE, REMOVAL .
Remove the bolt (2) and remove the oil level indicator (1).

Fig 2: Lower Oil Pan & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Drain the engine oil. Refer to STANDARD PROCEDURE .
NOTE:
The lower oil pan (1) does not need to be removed when removing the upper oil pan.
If required, remove the lower oil pan (1). Refer to PAN, OIL, REMOVAL .

Fig 3: Exhaust Hanger Bracket Assembly & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the two nuts (1) and the exhaust hanger bracket (7).

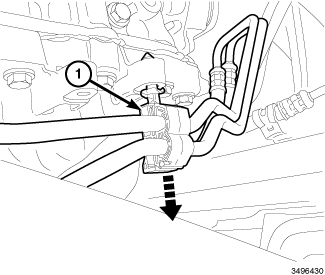

Fig 4: Disengaging Transmission Cooler Line Retainer
Courtesy of CHRYSLER GROUP, LLC
Disengage the transmission cooler line retainer (1) from the oil pan flange.

Fig 5: Rubber Plugs & Transmission-To-Engine Oil Pan Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove four transmission to the engine oil pan bolts (2 and 3).
Remove two rubber plugs (1) covering the rear oil seal retainer flange bolts.

Fig 6: Rear Oil Seal Retainer Flange Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Shown in illustration with transmission removed for clarity.

CAUTION:
There are two hidden M6 bolts that must be removed from the rear of the upper oil pan flange. If these bolts are not removed, the rear oil seal retainer flange will be severely damaged.
Remove two M6 bolts (1) from the rear oil seal retainer flange.

Fig 7: Oil Pan Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove nineteen M8 oil pan mounting bolts (1).

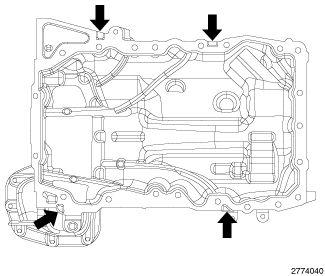

Fig 8: Pry Points
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Grand Cherokee (WK) oil pan shown in illustration, Wrangler (JK) oil pan similar.
Using the four indicated pry points, carefully remove the upper oil pan.
Remove all residual sealant from the upper and lower oil pans, timing chain cover, rear seal retainer and engine block mating surfaces. Refer to CLEANING .
